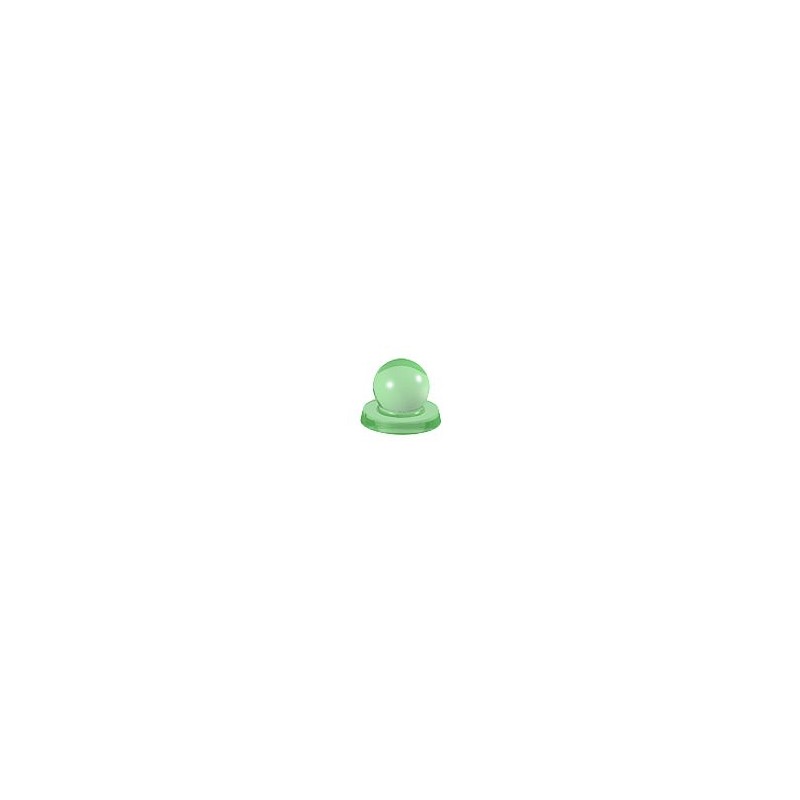

For 1205C: The plastic ball-type male part, to be incorporated into the root post cap and cast.
Use parallelogram rod 1201 P and cast in hard alloy. Use hollow burr 1230 to finish the male part and polish.
For laboratory use only.

• Transparent green calcinable plastic
• Height: 2.4 mm
• Ø 2.25 mm
• Base Ø: 3.2 mm

For 1206C: The unscrewable ball-type male part in TITANAX alloy (white, Ti-Al-V), to be screwed into an M2 base ring.

Use IMP-XS-042 screwdriver. Do not heat.

• Height: 2.8 mm
• Ø 2.25 mm
• Thread: M2
• Internal hexagon: 0.9 mm

For 1206CL : The unscrewable ball-type male part in TITANAX alloy with 0.3 mm extended thread.

Do not heat.

• Height: 3.35 mm
• Ø 2.25 mm
• Thread: M2
• Internal hexagon: 0.9 mm
