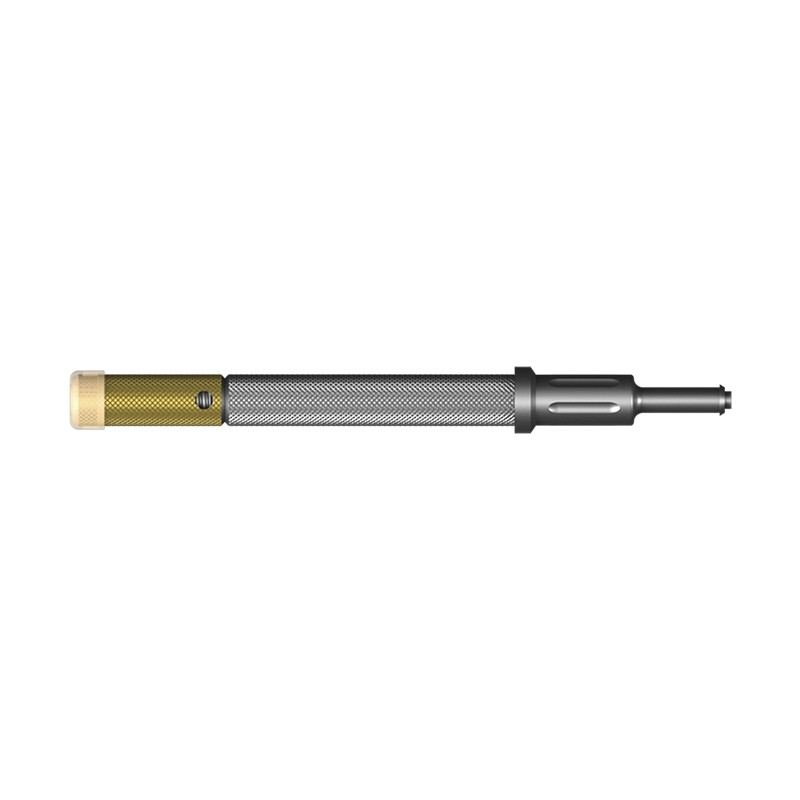

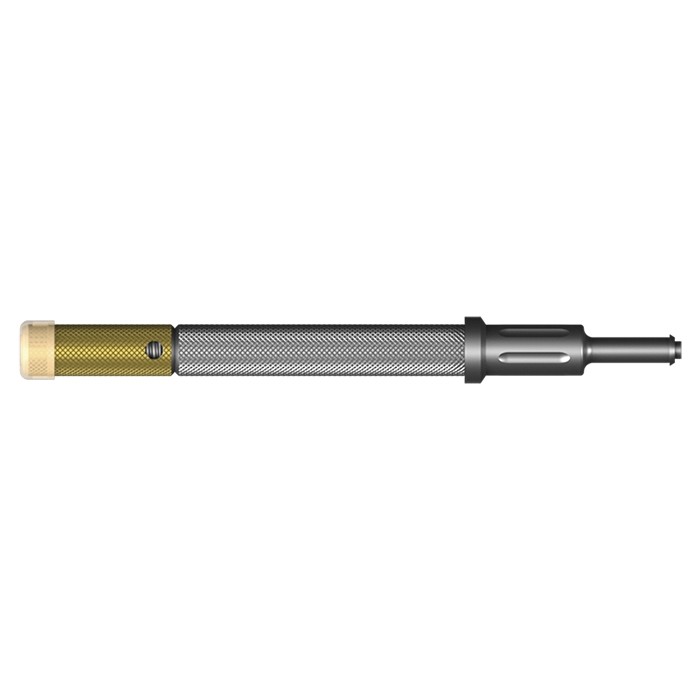

The 3-in-1 LOCATOR tool enables you to perform 3 actions for any locator pillar on the market.

3 distinct parts Gold-plated (for screwing and unscrewing), central (for inserting sheaths), tip (for removing sheaths).

The gold part is located on the abutment and, thanks to its raised triangle, allows the LOCATOR abutment to be pre-screwed into the mouth. On the other side of this part, you'll notice a hexagon into which you can insert a 1.25mm hexagonal screwdriver.

Once the two parts have been joined, simply use your torque wrench and tighten to 25 Ncm.

To insert a sheath, unscrew the gold-plated part and the tip, and a cylinder will appear at the end, into which you place the sheath. The sheath is inserted horizontally and clicks into place.

The tip, on the other hand, is used to uninsert a sheath, using a lever movement.
